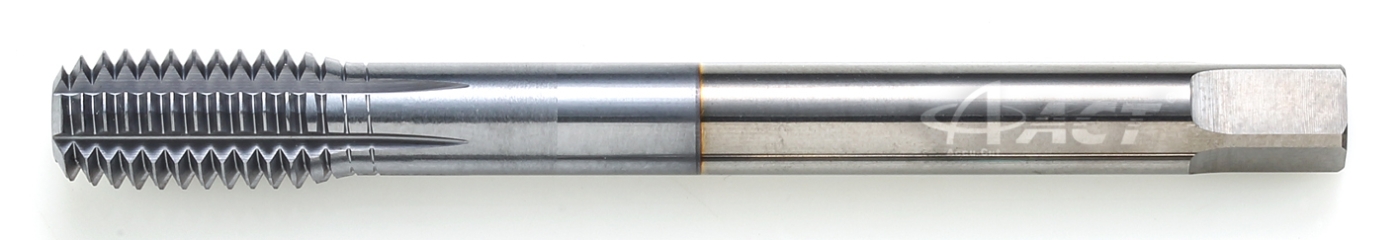

（RFS）Roll Form Solid Carbide Tap-Unified Fine Thread(JIS Shank)-UNEF

商品編號：RFS-UNEF

Detail Item/Price

Custom Made Carbide Tap

We accept custom made carbide tap for several types,

- For Extra Longer Working Length

- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

- For Special Application, such as Inconel, Stainless Steel or Hardened Material

- Interrupt thread or double thread are also available

- Welden, HSS tap for large size

- We provide you fully technical support and total solution on threading working pieces.

Fine More (UN) Unified Thread......



（RFS）Roll Form Solid Carbide Tap-Unified Fine Thread(JIS Shank)-UNC

（RFS）Roll Form Solid Carbide Tap-Unified Fine Thread(JIS Shank)-UNF

Straight Pointed Flute(UN)   Straight Flute(UN) Spiral Flute(UN) Straight Flute Mill(UN)

Fine More (UN) Unified Thread......
（RFS）Roll Form Solid Carbide Tap-Unified Fine Thread(JIS Shank)-UNC
（RFS）Roll Form Solid Carbide Tap-Unified Fine Thread(JIS Shank)-UNF

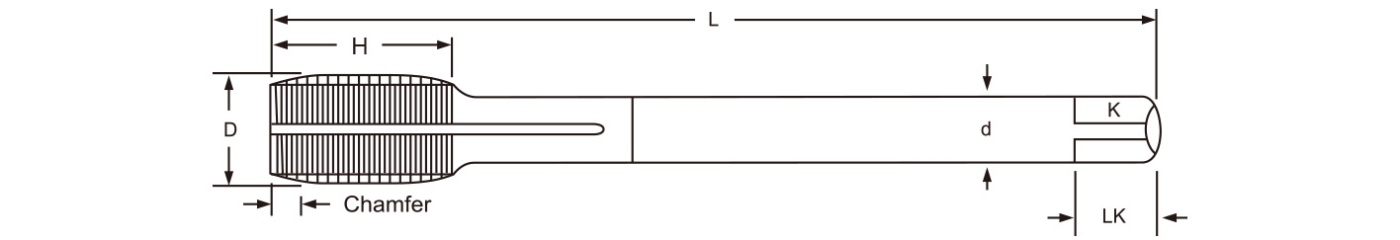

Unified Extreme FineThread	Specification			Square Shank		Class	Chamfer Length
Unified Extreme FineThread	Flute Length	Overall Length	Shank Diameter	Width	Length	Class	Chamfer Length
#12-32UNEF	10	60	5.5	4.5	7	2B	2P
#12-32UNEF	10	60	5.5	4.5	7	2B	4P
1/4-32UNEF	12	60	6	4.5	7	2B	2P
1/4-32UNEF	12	60	6	4.5	7	2B	4P
5/16-32UNEF	12	70	6.1	5	8	2B	2P
5/16-32UNEF	12	70	6.1	5	8	2B	4P
3/8-32UNEF	12	75	7	5.5	8	2B	2P
3/8-32UNEF	12	75	7	5.5	8	2B	4P
7/16-28UNEF	12	75	8	6	9	2B	2P
7/16-28UNEF	12	75	8	6	9	2B	4P
1/2-28UNEF	12	75	9	7	10	2B	4P
1/2-28UNEF	12	75	9	7	10	2B	4P
