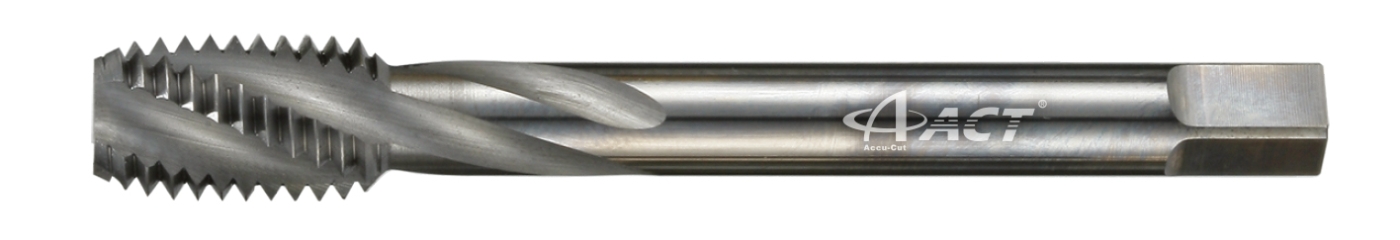

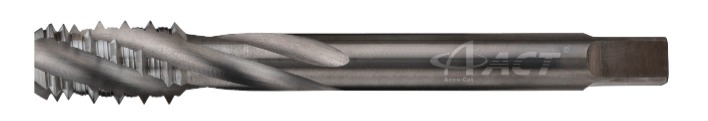

（SPS）Solid Carbide Tap-Unifed Thread(JIS Shank)-UNF

商品編號：SPS-UNF

Detail Item/Price

Custom Made Carbide Tap

We accept custom made carbide tap for several types,

- For Extra Longer Working Length

- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

- For Special Application, such as Inconel, Stainless Steel or Hardened Material

- Interrupt thread or double thread are also available

- Welden, HSS tap for large size

- We provide you fully technical support and total solution on threading working pieces.

Fine More (UN) Unified Thread......



(SPS）Solid Carbide Tap-Unifed Thread(JIS Shank)-UNC

(SPS）Solid Carbide Tap-Unified Thread(JIS Shank)-UNEF

Roll Form Flute(UN)   Straight Pointed Flute(UN) Straight Flute(UN) Straight Flute Mill(UN)

Fine More (UN) Unified Thread......
(SPS）Solid Carbide Tap-Unifed Thread(JIS Shank)-UNC
(SPS）Solid Carbide Tap-Unified Thread(JIS Shank)-UNEF

Application: Plastic , Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Aluminum Alloy (6061-T6, ADC), Aluminum(AC)

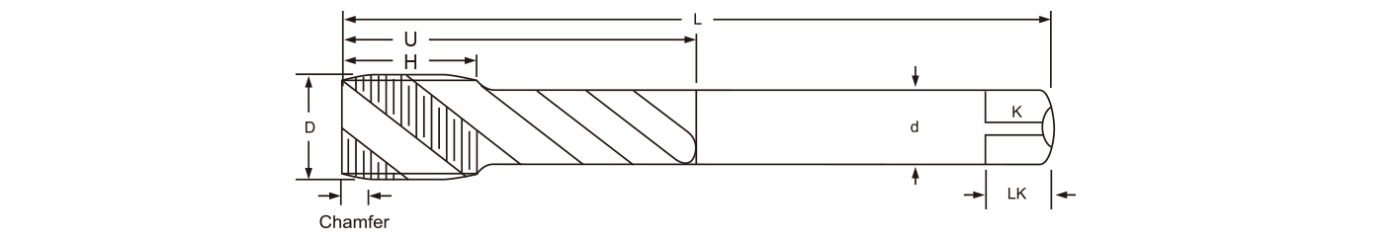

Unified Fine Thread	Specification			Square Shank		Class	Chamfer Length
Unified Fine Thread	Flute Length	Overall Length	Shank Diameter	Width	Length	Class	Chamfer Length
#5-44UNF	7	50	4	3.2	6	2B	2P
#6-40UNF	7	50	4	3.2	6	2B	2P
#8-36UNF	7	50	5	4	7	2B	2P
#10-32UNF	8	60	5.5	4.5	7	2B	2P
#12-28UNF	9	60	5.5	4.5	7	2B	2P

Application: Plastic, Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Soft Steel, Iron, Titanium Alloy, Tool Steel,Stainless Steel, Aluminum Alloy(6061-T6、ADC)

Unified Fine Thread	Specification			Square Shank		Class	Chamfer Length
Unified Fine Thread	Flute Length	Overall Length	Shank Diameter	Width	Length	Class	Chamfer Length
1/4-28UNF	9	60	6	4.5	7	2B	2P
5/16-24UNF	10	70	6.1	5	8	2B	2P
3/8-24UNF	10	75	7	5.5	8	2B	2P
7/16-20UNF	12	75	8	6	9	2B	2P
1/2-20UNF	12	75	9	7	10	2B	2P
9/16-18UNF	14	75	10.5	8	11	2B	2P
5/8-18UNF	14	75	12	9	12	2B	2P
