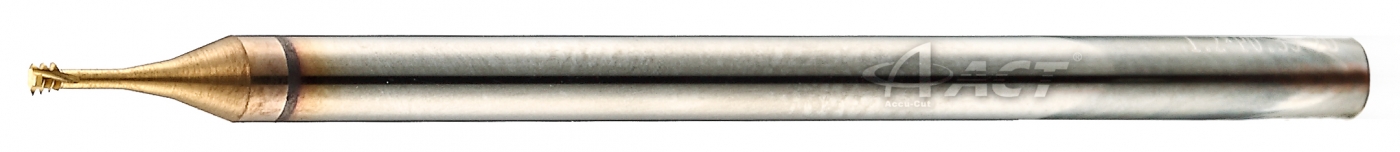

(TMUL) UN Carbide Thread Mill - Miniature Tools - Internal
商品編號：TMUL-UN
Thread Length: 3D (D = Nominal Thread Size)
-

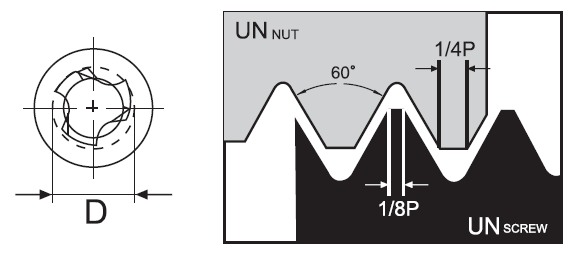

CARBIDE THREAD MILL- MICRO SIZE
THREAD LENGTH=3D
-
Item No. Flute (T) Thread Size (UNC) Coarse Thread Size (UNF) Fine Pitch (P) Diameter (D) Effective Length (U) Overall Length (L) Shank Diameter (d) X3TMUL8003 3 0"-80"UNF P80 1.18 3.9 50 3 X3TMUL7203 3 1"-72"UNF P72 1.44 5.8 50 3 X3TMUL5603 3 2"-56"UNC 3"-56"UNF P56 1.66 6.8 50 3 X3TMUL40041 3 4"-40"UNC P40 2.12 8.1 50 4 X3TMUL40042 3 5"-40"UNC 6"-40"UNF P40 2.46 9.8 50 4 X3TMUL3204 3 6"-32"UNC P32 2.57 10.7 50 4 X3TMUL3206 3 8"-32"UNC 10"-32"UNF P32 3.22 12.7 60 6 X3TMUL2806 3 1/4"-28"UNF P28 5.20 19.3 60 6 X3TMUL2408 3 5/16"-24"UNF P24 6.65 24.2 60 8 X3TMUL2006 3 1/4"-20"UNC 7/16"-20"UNF P20 4.85 19.4 60 6 -
