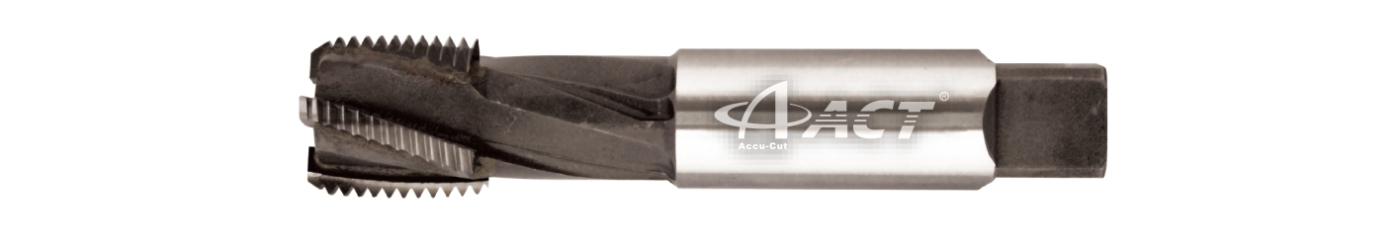

(SPW)Welded Carbide Spiral Tap-UnifiedThread (JIS Shank)-UN

商品編號:SPW-UN
  •



    Custom Made Carbide Tap

    We accept custom made carbide tap for several types,

    - For Extra Longer Working Length

    - Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

    - For Special Application, such as Inconel, Stainless Steel or Hardened Material

    - Interrupt thread or double thread are also available

    - Welden, HSS tap for large size

                                                        - We provide you fully technical support and total solution on threading working pieces.

                  Fine More (UN) Welded Carbide Tap Unified Thread......



          (SPW)Welded Carbide Spiral Tap- Unified Thread (JIS Shank)-UNS

            (SPW)Welded Carbide Spiral Tap- Unified Find Thread (JIS Shank)-UNF


    (SPW)Welded Carbide Spiral Tap- Unified Extreme Fine Thread (JIS Shank)-UNEF


                                                                                                                                                             Straight Flute(UN)






  • Fine More (UN) Welded Carbide Tap Unified Thread......
    (SPW)Welded Carbide Spiral Tap- Unified Thread (JIS Shank)-UNS
    (SPW)Welded Carbide Spiral Tap- Unified Find Thread (JIS Shank)-UNF
    (SPW)Welded Carbide Spiral Tap- Unified Extreme Fine Thread (JIS Shank)-UNEF


    Application:  Plastic, Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, ,Brass,Aluminum Alloy(6061-T6、ADC),Soft Steel, Iron, Titanium Alloy, Aluminum(AC)

     Unified Thread Specification Square Shank Class Chamfer Length
    Flute Length Overall Length  Shank Diameter Width Length
    5/8-16UN 12 100 12.5 10 13 2B 2P
    5/8-20UN 12 100 12.5 10 13 2B 2P
    5/8-28UN 12 100 12.5 10 13 2B 2P
    5/8-32UN 12 100 12.5 10 13 2B 2P
    11/16-16UN 12 100 14 10 13 2B 2P
    11/16-20UN 12 100 14 10 13 2B 2P
    11/16-28UN 12 100 14 11 14 2B 2P
    11/16-32UN 12 100 14 11 14 2B 2P
    3/4-28UN 12 100 14 11 14 2B 2P
    3/4-32UN 12 100 14 12 15 2B 2P
    13/16-12UN 12 100 15 12 15 2B 2P
    13/16-16UN 12 100 15 12 15 2B 2P
    13/16-28UN 12 100 15 12 15 2B 2P
    13/16-32UN 12 100 15 12 15 2B 2P
    7/8-12UN 12 100 17 12 15 2B 2P
    7/8-16UN 12 100 17 12 15 2B 2P
    7/8-28UN 12 100 17 13 16 2B 2P
    7/8-32UN 12 100 17 13 16 2B 2P
    15/16-12UN 12 100 19 15 18 2B 2P
    15/16-16UN 12 100 19 15 18 2B 2P
    15/16-28UN 12 100 19 15 18 2B 2P
    15/16-32UN 12 100 19 15 18 2B 2P
    1-16UN 12 110 20 15 18 2B 2P
    1-28UN 12 110 20 15 18 2B 2P
    1-32UN 12 110 20 15 18 2B 2P
    1 1/16-12UN 12 110 20 15 18 2B 2P
    1 1/16-16UN 12 110 20 15 18 2B 2P
    1 1/16-20UN 12 110 20 15 18 2B 2P
    1 1/16-28UN 12 110 20 15 18 2B 2P
    1 1/8-16UN 12 110 22 17 20 2B 2P
    1 1/8-20UN 12 110 22 17 20 2B 2P
    1 1/8-28UN 12 110 22 17 20 2B 2P
    1 3/16-12UN 12 110 23 17 20 2B 2P
    1 3/16-16UN 12 110 23 17 20 2B 2P
    1 3/16-20UN 12 110 23 17 20 2B 2P
    1 3/16-28UN 12 110 23 17 20 2B 2P
    1 1/4-16UN 12 110 24 19 22 2B 2P
    1 1/4-20UN 12 110 24 19 22 2B 2P
    1 1/4-28UN 12 110 24 19 22 2B 2P
    1 5/16-12UN 12 110 25 19 22 2B 2P
    1 5/16-16UN 12 110 25 19 22 2B 2P
    1 5/16-20UN 12 110 25 19 22 2B 2P
    1 5/16-28UN 12 110 25 19 22 2B 2P
    1 3/8-16UN 12 110 26 21 24 2B 2P
    1 3/8-20UN 12 110 26 21 24 2B 2P
    1 3/8-28UN 12 110 26 21 24 2B 2P
    1 7/16-12UN 12 110 28 21 24 2B 2P
    1 7/16-16UN 12 110 28 21 24 2B 2P
    1 7/16-20UN 12 110 28 21 24 2B 2P
    1 7/16-28UN 12 110 28 21 24 2B 2P
    1 1/2-16UN 12 110 30 23 26 2B 2P
    1 1/2-20UN 12 110 30 23 26 2B 2P
    1 1/2-28UN 12 110 30 23 26 2B 2P
