Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
Fine More (UN) Welded Carbide Tap Unified Thread......

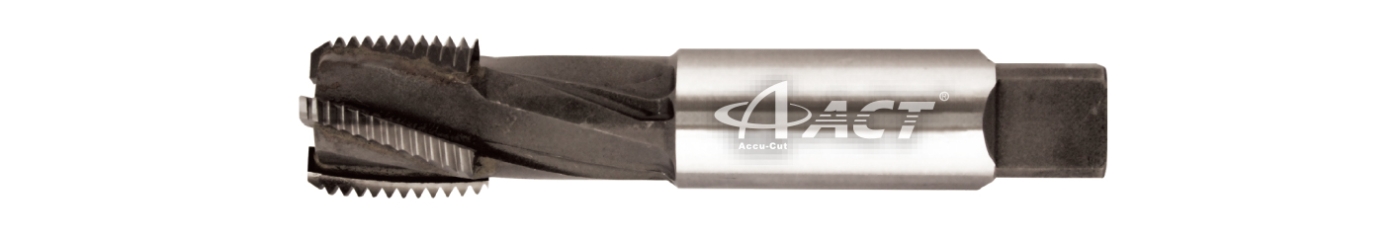

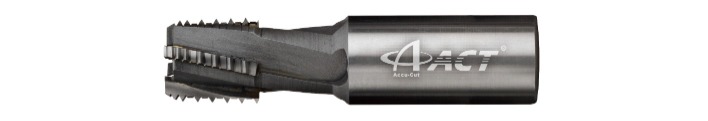

（SPW）Welded Carbide Spiral Tap- Unified Thread (JIS Shank)-UN
（SPW）Welded Carbide Spiral Tap- Unified Find Thread (JIS Shank)-UNS
（SPW）Welded Carbide Spiral Tap- Unified Extreme Fine Thread (JIS Shank)-UNEF -
Fine More (UN) Welded Carbide Tap Unified Thread......
（SPW）Welded Carbide Spiral Tap- Unified Thread (JIS Shank)-UN
（SPW）Welded Carbide Spiral Tap- Unified Find Thread (JIS Shank)-UNS
（SPW）Welded Carbide Spiral Tap- Unified Extreme Fine Thread (JIS Shank)-UNEF
Application: Plastic, Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, ,Brass,Aluminum Alloy(6061-T6、ADC),Soft Steel, Iron, Titanium Alloy, Aluminum(AC)

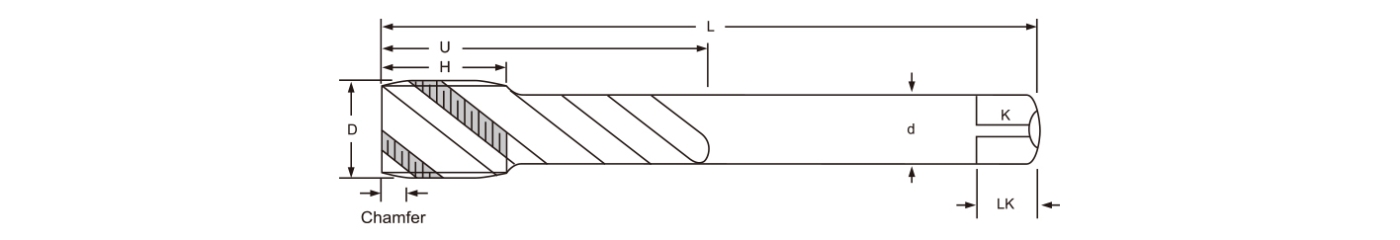

Unified Fine Thread Specification Square Shank Class Chamfer Length Flute Length Overall Length Shank Diameter Width Length 5/8-18UNF 12 100 12.5 10 13 2B 2P 3/4-16UNF 12 100 14 11 14 2B 2P 7/8-14UNF 12 100 17 13 16 2B 2P 1-12UNF 12 110 20 15 18 2B 2P 1 1/8-12UNF 12 110 22 17 20 2B 2P 1 1/4-12UNF 12 110 24 19 22 2B 2P 1 3/8-12UNF 15 110 26 21 24 2B 2P 1 1/2-12UNF 15 110 30 23 26 2B 2P -
